    SYS-120C-TR

    Print
    Intergrated Board

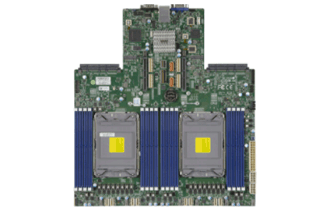

    X12DDW-A6
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • Key Applications
      - Web Server, Firewall Application
      - Data Center Optimized, Value IaaS
      - Cloud Computing, Compact Server
      - DNS & Gateway Servers, Firewall Application
      - CDN, Edge Nodes

      Key Features
      1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
    • 2. Intel® C621A Chipset
    • 3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® DCPMM
    • 4. 2 PCI-E 4.0 x16 FHHL;
      2 PCI-E 4.0 x16 AIOM (OCP 3.0);
      2 PCI-E 3.0 x2 NVMe M.2
    • 5. Dual AIOM with NCSI (OCP 3.0) for networking, 1 dedicated IPMI LAN
    • 6. 8x 2.5" hot-swap SATA/SAS drive bays
    • 7. 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
    • 8. 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
    • 9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
    Specifications
    Product SKUs
    SYS-120C-TR
    • SuperServer SYS-120C-TR (Black front & sliver body)
    Motherboard
    Super X12DDW-A6
    Processor/Cache
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    • 3 UPI up to 11.2GT/s
    • Support CPU TDP 270W
    • CPUs with TDP higher than 185W may have support conditions due to power and thermal limitations.
    Cores
    • Up to 40C/80T
    System Memory
    Memory
    • Memory Capacity: 16 DIMM slots
    • UP to 4TB: 16x 256 GB DRAM
    • UP to 6TB: 8x 256 GB DRAM and 8x 512 GB PMem
    • Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
    • Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2 V
    Error Detection
    • ECC
    On-Board Devices
    NVMe
    • NVMe; RAID 0/1/5/10 support
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    SATA
    • 1 SuperDOM port(s)
    LAN
    • 1 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 port(s) (2 rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI FLASH ROM
    Management
    Software
    • SCC
    • Redfish API
    • IPMI 2.0
    • SSM
    • Intel® Node Manager
    • SPM
    • KVM with dedicated LAN
    • SUM
    • NMI
    • Watch Dog
    • SuperDoctor® 5
    Power Configurations
    • ACPI/APM Power Management
    PC Health Monitoring
    CPU
    • 4+1 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    FAN
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    • Fans with tachometer monitorin
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-LB13AC2-R860AW
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 23.5" (597mm)
    Package
    • 7.8" (H) x 23.8" (W) x 32.4" (D)
    Weight
    • Net Weight: 25 lbs (11.3 kg)
    • Gross Weight: 40 lbs (18.1 kg)
    Available Color
    • Black front & sliver body
    Front Panel
    Buttons
    • Power On/Off button
    • Reset button
    LEDs
      • Power status LED
      • HDD activity LED
      • Network activity LEDs
    Expansion Slots
    PCI-Express (PCI-E)
    • Slot 1: PCI-E 4.0 x16 FHHL
    • Slot 2: PCI-E 4.0 x16 FHHL
    Drive Bays / Storage
    Hot-swap
    • 8x 2.5" hot-swap SATA/SAS drive bays
    M.2
    • 2 M.2 NVMe
    • M-Key, 2280
    Peripheral Bays
    • 1 DVD-ROM drive bays (optional)
    System Cooling
    Fans
    • 6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 2 Air Shroud(s)
    Power Supply
    AC 860W, Platinum Level, Redundant Power Supply, 54.5mm width
    Dimension

    (W x H x L)
    • 54.5 x 40.25 x 320 mm
    Output Type
    • Gold Finger
    Certification Platinum Level Certified 94%+ Platinum Level



    [ Test Report ]
    Operating Environment
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)


    Parts List
    Parts List - (Items Included)


    		 Part Number

    		 Qty

    		 Description
    Motherboard / Chassis MBD-X12DDW-A6

    CSE-LB13AC2-R860AW     		1

    1     		Super X12DDW-A6 Motherboard

    1U Chassis
    Backplane BPN-SAS3-113A-N2 1 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices
    Cable 1 CBL-SAST-1270LP-100 1 SlimlineLP x8 (LE) to 2x MiniSAS HD x4(STR),70/60CM,100
    FAN 1 FAN-0101L4 2 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    Parts MCP-150-00015-0B 6 Rubber pad, 3.0mm H, 10x10mm
    Air Shroud MCP-310-00105-0B 2 Mylar Air Shroud for LA15-AW,LB13-AW,LB16-AW + X12DDW
    Manual MNL-2330-QRG 1 120C-TR Quick Reference Guide
    Riser Card RSC-D-6G4 1 1U LHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
    Riser Card RSC-DR-6G4 1 1U RHS DCO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
    Heatsink / Retention SNK-P0077P 2 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply PWS-860P-1R2 2 1U 860W, Redundant power supply, 54.5mm width, Platinum with
    *Power Distributor PDB-PT116-SL8824 1 Based on PDB-PT116-L8824 to optimize 24Pin etc cable lengths
    *Cable 2 CBL-CDAT-0680-55 1 [NR]FRNT CNTL,FLAT,IDC 2x10,PH1.27 TO 2x10,PH1.27,55CM,28AWG
    *Cable 3 CBL-PWCD-0160-IS 2 PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    *FAN 2 FAN-0101L4 4 40x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    *Front Panel FPB-FP112 1 Front control board for SC113,113M (U/C share
    *Parts MCP-160-00028-0B 1 Mylar Cable Channel for Cloud-DC, X12 DDW
    *Drive Tray(s) MCP-220-00188-0B 8 Black gen-5.5 tool-less cost-effective 2.5\" HDD tray (no dummy)
    *Rear Window MCP-240-00173-0N 1 1U X12 AWIO Rear window for LA15,LB16,LB13 Redundant PWS
    *Power Supply MCP-250-00009-0N 1 SC113 Redundant Power Distributor Cover
    *Rail Set MCP-290-00063-0N 1set Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
    *Fan Holder MCP-320-00056-0B 24 40X56 rubber fan pin for SC819U, SC119U,RoHS/REACH
    *Fan Holder MCP-320-00066-0B 1 Fan holder with cable channel, 40X56mm fan, for LA15,LB16,LB13
    *Parts MCP-320-00067-0B 1 Chassis base Air Foam block set (L+R) for Cloud-DC
    *Fan Holder MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List
      Part Number Qty Description
    3108 CacheVault BTR-CV3108-1U1 1 CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
    MCP-240-00127-0N 1 SuperCap mounting bracket for 2.5" HDD location
    BTR-TFM8G-LSICVM02 1 CacheVault for Broadcom 3108
    BKT-BBU-BRACKET-05 1 SuperCap mounting bracket for PCI-E location
    3108 RAID Card CBL-SAST-0593 2 Internal Mini-SAS HD to Mini-SAS HD 60cm
    AOC-S3108L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60;
    3808 HBA Card CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM
    AOC-S3808L-L8IT 1 Standard LP, 8 internal ports (12Gb/s) Gen-4, 16HDD; HBA;
    3908 RAID Card AOC-S3908L-H8IR-16DD 1 Standard LP, 8 internal ports (12Gb/s) Gen-3, 122HDD; RAID 0, 1, 5, 6, 10, 50, 60;
    CBL-SAST-1264-100 1 Slimline x8 (STR) to 2x MiniSAS HD x4,65CM
    3908/3916 CacheVault MCP-240-00127-0N 1 SuperCap mounting bracket for 2.5" HDD location
    BTR-CVPM05 1 CacheVault for Broadcom 3908/3916
    BKT-BBU-BRACKET-05 1 SuperCap mounting bracket for PCI-E location
    Add-on card for additional M.2 AOC-SLG3-2M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    AOC-SLG3-2H8M2 - Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe/SATA Modules; RAID 0,1
    AIOM Network Card(s) AOC-AH25G-m2S2TM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28 & 2x 10GbE RJ45, PCI-E x8/x4, Mellanox® CX4 Lx EN & Intel® X550-AT2
    AOC-AG-i4SM - OCP 3.0 AIOM NIC, 4x 1GbE SFP, PCI-E 2.1 x4, Intel® i350-AM4
    AOC-AG-i4M - OCP 3.0 AIOM NIC, 4x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM4
    AOC-ATG-i4SM - OCP 3.0 AIOM NIC, 4x 10GbE SFP+, PCI-E 3.0 x8, Intel® XL710-BM1
    AOC-AG-i2M - OCP 3.0 AIOM NIC, 2x 1GbE RJ45, PCI-E 2.1 x4, Intel® i350-AM2
    AOC-ATG-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel® X550-AT2
    AOC-A25G-m2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Mellanox® CX-6 LX
    AOC-ATG-i2T2SM - OCP 3.0 AIOM NIC, 4x 10GbE RJ45 & SFP+, PCI-E x8, Intel® X710-TM4
    AOC-A25G-b2SM - OCP 3.0 AIOM NIC, 2x 25GbE SFP28, PCI-E x8, Broadcom® BCM57414
    AOC-ATG-i2SM - OCP 3.0 AIOM NIC, 2x 10GbE SFP+, PCI-E 3.0 x8, Intel® X710-BM2
    AOC-A100G-m2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Mellanox® CX-6 DX
    AOC-ATGC-i2TM - OCP 3.0 AIOM NIC, 2x 10GbE RJ45, PCI-E 3.0 x4, Intel X710-AT2
    AOC-A100G-b2CM - OCP 3.0 AIOM NIC, 2x 100GbE QSFP28, PCI-E 4.0 x16, Broadcom® BCM57508
    Cable Management Arm MCP-290-00152-0N 1 1U Supermicro Cable Management Arm 2nd Gen
    DVD Reader DVM-TEAC-DVDRW-SBT5 1 BLACK TEAC SLIM DVD-RW SATA DRIVE
    DVM-PLDS-DVDRW-SBT5 1 PHILIPS SLIM BLACK DVD-RW SATA DRIVE
    MCP-220-81502-0N 1 Slim SATA DVD mounting kit. Add 1 per DVD
    DVM-TEAC-DVD-SBT5 1 BLACK TEAC SLIM DVD SATA DRIVE
    Fan Upgrade FAN-0163L4 6 40x40x56 mm, 23.3K-20.3K RPM, Counter-rotating Fan
    Front USB Kit MCP-220-00087-0B 1 Black USB tray for slim DVD bay
    Intel VROC Key AOC-VROCSTNMOD 1 Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD 1 Intel VROC Premium, RAID 0, 1, 5, 10
    AOC-VROCINTMOD 1 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    TPM security module AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller; vertical form factor
    AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
    AOM-TPM-9670V-S-FIPS 1 SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS; vertical form factor
