AS -4023S-TRT
Print

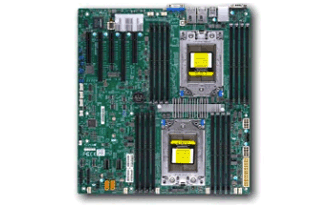

Intergrated Board
Key Features
- - Cloud Computing
- Data Center
- General purpose, SMB, Web Hosting
- 1.Dual AMD EPYC™ 7001/7002 Series Processors (AMD EPYC 7002 series drop-in support requires board revision 2.x)
- 2.2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs (7001 Processors)
4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs (Board revision 2.x required + 7002 Processors)
- 3.Expansion slots:
2 PCI-E x16 slots
3 PCI-E x8 slots
M.2 Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
M.2 Form Factor: 2280, 22110
M.2 Key: M-key
- 4.Integrated IPMI 2.0 + KVM with dedicated LAN
• Software Out of Band License
key (SFT-OOB-LIC) included
for OOB BIOS management
- 5.Dual 10G LAN ports
- 6.8 hot-swap 3.5" SATA3 drive bays;
3 peripheral 5.25" drive bays;
1 M.2 NVMe SSD supported
- 7.1280W Redundant Power Supplies
Platinum Level
(Full redundancy based on configuration and application load)
Specifications
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Parts List
 |
|||
| Parts List - (Items Included) | |||
 |
|||
| Part Number | Qty | Description | |
| Motherboard | MBD-H11DSi-NT | 1 | Super H11DSi-NT Motherboard |
| Chassis | CSE-745BAC-R1K28BP2 | 1 | 4U Chassis |
| Backplane | BPN-SAS3-743A-N4 | 1 | 8-port 4U/Tower (SC743/745) 3.5-inch SAS3/SAS2/SATA3 12Gbps backplane, 4 of 8 ports support NVMe devices |
| Cable | CBL-SAST-0508-01 | 2 | Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG,HF,RoHS/REACH,PBF |
| Heat Sink | SNK-P0063P | 2 | 2U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| IO Shield | MCP-260-00042-0N | 1 | STD I/O shield for X9 socket R server MB with Gasket. |
| Power Supply | PWS-1K28P-SQ | 2 | 1U 1280W, redundant single output power supply |
| Software | SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
|
|||
| Optional Parts List | |||
|
|||
| Part Number | Qty | Description | |
| NVMe support kit | MCP-220-00080-0B | - | 3.5" to 2.5" HDD tray - ADD QTY 1 per drive (Hot swap not supported) |
| CBL-SAST-0818 | OCuLink v.91,INT,PCIe NVMe SSD, 55CM - ADD QTY 1 per drive | ||
| DVD Drive Kit | DVM-LITE-DVDRW24-HBT | - | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF |
| 1x CBL-SAST-0624 | SATA,INT,ROUND,ST-ST,70CM,30AWG | ||
| 1x CBL-0082L | Y split, big 4 pin to two RA SATA power extension 15cm, 18AWG | ||
| Mounting Rails | CSE-PT26L-B | - | 4U Chassis Rail Kits SC743,745 (w/ 2pcs Black Chassis Ears) |
| Tray | MCP-220-00044-0N | - | Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U |
| 3.5" to 2.5" HDD tray Converter | MCP-220-00080-0B | - | Black hot-swap gen 2 3.5" to 2.5" HDD tray – ADD QTY 1 per drive |
| Storage Control Card and Cable(s) | AOC-S3008L-L8e | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| AOC-S3008L-L8i | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E | |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| AOC-S3108L-H8iR | - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 | |
| 2x CBL-SAST-0593 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s | ||
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| Global Services & Support |
OS4HR3/2/1 |
- | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
