SYS-E300-9D-8CN8TP

Print
Intergrated Board

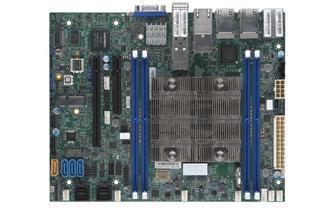

X11SDV-8C-TP8F
Views Angled ViewsTop ViewsFront ViewsRear Views

Key Features

  • • Intel® Xeon® processor D-2146NT,
    8-Core, 16 Threads, 80W
  • • System on Chip
  • • 1 Fixed 2.5" drive bay with bracket
  • • 1 M.2 slot M key for SSD, 2242/80,
    1 M.2 B Key for SSD/ WAN card,
    1 Mini-PCI-E with mSATA Support,
    1 PCI-E 3.0 x8 slot
  • • Up to 512GB ECC LRDIMM,
    up to 256GB ECC DIMM
    DDR4-2666Mz; in 4 DIMM slots
  • • 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+
    and 1 dedicated LAN for IPMI 2.0
  • • 1 VGA, 2 USB 3.0
  • • 3x 40x28mm 4-PIN PWM Fan
  • • Low-noise DC Power Supply
  • • Built in Intel QAT up to 40Gbps
    Crypto/Compression
Specifications
Product SKUs
SYS-E403-9D-16C-FN13TP
  • SuperServer E403-9D-16C-FN13TP (Black)

Motherboard
Super X11SDW-16C-TP13F

Processor
CPU
  • Intel® Xeon® processor D-2183IT,
    CPU TDP support 100W
Cores / Cache
  • 16 Cores, 32 Threads

System Memory
Memory Capacity
  • Up to 512GB DDR4 ECC LRDIMM
  • Up to 256GB DDR4 ECC RDIMM
  • 4 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 L/RDIMM
  • Operating speed up to 2400MHz
DIMM Sizes
  • 128GB, 64GB, 32GB, 16GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • System on Chip (SoC)
SATA
  • SATA3 (6Gbps) ports via SoC controller
Network Controllers
  • Dual 10G SFP+ via SoC
  • Dual 10GBase-T via Intel X557
  • 8x 1GbE with Intel I350-AM4
  • Single 1GbE with Intel I210
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Video
  • VGA via Aspeed AST2500 BMC

Input / Output
SATA
  • 4 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
LAN
  • 9 RJ45 Gigabit Ethernet LAN ports
  • 2 RJ45 10GbE LAN ports
  • 2 10G SFP+ LAN ports
  • 1 RJ45 Dedicated IPMI LAN port
USB
  • 2 USB 3.0 ports (front)
  • 2 USB 2.0 ports (front)
Video
  • 1 VGA port
Serial Port / Header
  • 1 COM via RJ45

System BIOS
BIOS Type
  • 128Mb SPI Flash with AMI BIOS

Management
Software
Chassis
Form Factor
  • Box PC
Model
  • CSE-E403IF-505

Dimensions and Weight
Height
  • 4.3" (109mm)
Width
  • 10.5" (267mm)
Depth
  • 16" (406mm)
Weight
  • Gross Weight: 23 lbs (10.43 kg)
  • Net Weight: 17 lbs (7.7 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • Network activity LEDs
  • System Information LED

Expansion Slots
PCI-Express
  • 2 PCI-E 3.0 x16 (FH3/4L) slots or
  • 2 PCI-E 3.0 x8, 1 PCI-E 3.0 x16 (FH3/4L) slots
M.2
  • 1 M.2 M-Key , 2280/22110
  • 1 M.2 E-Key , 2230
  • 1 M.2 B-Key , 3042

Drive Bays
Internal
  • 4 Internal 2.5" drive bays

System Cooling
Fans
  • 3x 80x80mm PWM redundant fans

Power Supply
600W AC multi output power supply w/ PFC
AC Voltage
  • 100-240 V, 50-60 Hz, 7.5-3.1 Amp
+5V
  • 20 Amp
+5V standby
  • 3 Amp
+12V
  • 49 Amp
+3.3V
  • 16 Amp
Certification Gold Level Certified
  Gold Certified
  [ Test Report ]

Operating Environment / Compliance
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:
    0°C ~ 50°C (32°F ~ 122°F)
  • Non-operating Temperature:
       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:
       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:
       5% to 95% (non-condensing)
Parts List
Parts List - (Items Included)

 Part Number
 Qty
 Description
Motherboard / Chassis MBD-X11SDW-16C-TP13F
CSE-E403IF-505		 1
1		 Super X11SDW-16C-TP13F Motherboard
Embedded Server Box
Add-on Card / Module AOM-SDW-B16X2-P 1 AOM-SDW-B16X2, Dual PCIE x16 slot WIO Riser Card for Intel FlexRAN project,RoHS
Cable 1 CBL-0082L 1 Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
Cable 2 CBL-0483L 2 SATA,INT,ROUND,ST-ST,29CM,30AWG
Cable 3 CBL-CDAT-0850 1 CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
Parts MCP-260-00144-0B 1 1U I/O Shield for X11SDW with EMI Gasket, Black
Air Shroud MCP-310-50502-0B 1 Air shroud for SC505 + X10SDV-7TP8F
Power Supply PWS-601-1H 1 1U 600/680W MULTI OUTPUT PWS 80+ GOLD
Notes:
  1. Parts with * are inside the chassis
  2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
Hide Parts List
