    SYS-E100-9S

    Print
    Intergrated Board

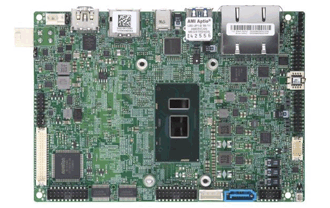

    X11SSN-H-WOHS
    Views Angled ViewsFront ViewsRear Views

    Key Features


    • - IoT Gateway for Smart Factory/Building/Home
      - Kiosk, Interactive info system
      - Environmental Monitor
    • • 7th Generation Intel® Core™ i7-7600U Processor; Single Socket FCBGA 1356
      • System-on-Chip
      • 1 M.2 B-Key 2280, 1 Full size Mini-PCI-E
      • Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2133MHz; 2 DIMM slots
      • Dual GbE LAN w/ Intel i219LM + i210IT
      • 4 COM (RS-232/422/485), 2 USB 3.0, 4 USB 2.0, 1 DIO via DB9
      • 1 Display Port, 1 HDMI port
      • Fanless design
      • Lockable 12V DC 60W power adapter
    Specifications
    Product SKUs
    SYS-E100-9S
    • SuperServer E100-9S (Black)

    Motherboard
    Super X11SSN-H-WOHS

    Processor/Cache
    CPU
    • 7th Generation Intel® Core i7-7600U Processor
    • Single Socket FCBGA 1356
    • System-on-Chip
    • CPU TDP support 15W

    System Memory
    Memory Capacity
    • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
    Memory Type
    • DDR4 up to 2133MHz
    DIMM Sizes
    • 16GB, 8GB, 4GB
    Memory Voltage
    • 1.2V

    On-Board Devices
    Chipset
    • System on Chip
    Network Controllers
    • Single LAN with Intel® I210IT
    • Single LAN with Intel® PHY I219LM
    Video
    • Intel® HD Graphics 620

    Input / Output
    USB
    • 1 USB 3.1 (Type C)
    • 2 USB 3.0 (rear via header)
    • 4 USB 2.0 (rear via headers)
    Video Output
    • 1 DP (Display Port) port
    • 1 HDMI port
    COM Port
    • 4 COM ports (4 headers)
    • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
    Audio
    • 1 HD Audio header (Mic-in/Line-Out) (option)
    Others
    • 1 DIO via DB9
    Chassis
    Form Factor
    • 3.5" SBC
    Model
    • CSE-E101-01

    Dimensions
    Width
    • 7.68" (195mm) / 11.81" (300mm) - pkg.
    Height
    • 1.73" (44mm) / 5.12" (130mm) - pkg.
    Depth
    • 5.94" (151mm) / 11" (279mm) - pkg.
    Weight
    • Net Weight: 2.65 lbs (1.2 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED and Hard drive activity LED

    Expansion Slots
    PCI-Express
    • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3)
    M.2
    • Interface: SATA and PCIe 3.0 x1 and USB 2.0
    • Form Factor: B-Key 2242, 2280

    Drive Bays
    Internal
    • 1 M.2 2280 B-Key for SATA or PCIe SSD (2242 can be supported with bracket)

    System Cooling
    Fans
    • Fan-less design

    Power Supply
    Lockable 12V DC 60W power adapter

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    Power Configurations
    • +12V DC Power Input
    • ACPI Power Management
    • Control of power-on for recovery from AC power loss
    • Force Power On by Jumper
    • CPU thermal trip support for processor protection

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
      0°C ~ 50°C (32°F ~ 122°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Operational Vibration
    • IEC 60068-2-64, 5 Grms, randon, 5-500 Hz, 1hr/axis
    Operational Shock
    • IEC 60068-2-27, 30G, half sine, 11ms
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard / Chassis MBD-X11SSN-H-WOHS
    CSE-E101-01    		 1
    1    		 Super X11SSN-H-WOHS Motherboard
    Chassis for Embedded 3.5" SBC
    Power Adapter MCP-250-10117-0N 1 60W DC power adapter with US power cord 18AWG 6ft (0-40°C)
    Hide Parts List
