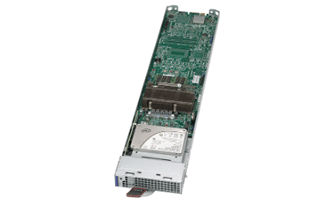

MBI-6119G-T8HX

Print
Views Angled ViewsTop ViewsRear Views

Key Features

  • - 196 Skylake UP nodes per 42U Rack
    - 28/14 Skylake-H UP nodes in 6U/3U
  • 1. Intel® Xeon® processor E3-1585 v5 built-in; Socket FCBGA 1440
  • 2. Up to 32GB DDR4-2133MHz ECC SO-DIMM in 2 DIMM slots per node
  • 3. 1x 2.5" SATA3 SSD, 1x SATADOM, 2x M.2 (PCI-E 3.0 x4)
  • 4. Dual 10GbE LAN ports
  • 5. Dedicated LAN supports IPMI 2.0
Specifications
Product SKUs
MicroBlade
  • MBI-6119G-T8HX

Motherboard

  • B2SS1-H-MTF

Processor/Cache
CPU
  • Single Socket FCBGA 1440
  • Intel® Xeon® processor E3-1585 v5 built-in
  • CPU TDP up to 65W

System Memory
Memory Capacity
  • Up to 32GB Unbuffered ECC SO-DIMM, in 2 DIMM slots per node
Memory Type
  • 2133/1866/1600MHz ECC DDR4 SDRAM 72-bit, 260-pin SO-DIMMs
DIMM Sizes
  • 16GB, 8GB
Memory Voltage
  • 1.2 V

On-Board Devices
Chipset
  • Intel® C236 chipset
SATA
  • SATA3 (6Gbps) via chipset
Network Controllers
  • Dual 10GbE LAN ports
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 5.0
  • DMI 2.3
  • PCI 3.0
  • Plug and Play (PnP)
  • SMBIOS 3.0
  • UEFI 2.3.1
Dimensions
Height
  • 1.2" (30.48mm)
Width
  • 4.94" (125.48mm)
Depth
  • 23.2" (589.28mm)
Weight
  • Gross Weight: 5.01 lbs (2.27 kg)
Available Colors
  • Silver Grey

Front Panel
LEDs
  • Power LED
  • Fault LED
  • Network Activity LED
  • UID / KVM LED

Drive Bays
Internal
  • 1x 2.5" SATA3 (6Gbps) SSD per blade
  • 2x M.2 (PCI-E 3.0 x4)
  • 1x SATADOM

Operating Environment / Compliance
Environmental Spec.
  • Operating Temperature:

       10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature:

       -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)

Electromagnetic Compatibility (EMC)
United States / Canada
  • FCC- Emissions (US) Verification
Europe
  • EN55022 - Emissions
  • EN55024 - Immunity
  • EN61000-3-2 - Harmonics
  • EN61000-3-3 - Voltage Flicker
  • CE - EMC Directive 89/336/EEC
Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard MBD-B2SS1-H-MTF 1 MicroBlade Board
MicroBlade Sled MCP-680-31406-0N 1 M628 MicroBlade Skylake UP transcoding (complete assembly)
Micro Blade Module Chassis MCP-620-31401-0N

MCP-620-31409-0N

MCP-620-31410-0N

MCP-620-31408-0N		 2

1

1

1		 M628 Sled AOM-BPN Bracket

M628 Sled Node Cover with asset tag

M628 Sled Front Window with asset tag opening

M628 MicroBlade Skylake UP transcoding Sled Base
Add-on Card AOM-BPN-MS28HS-P 1 AOM-BPN-MS28HS-P
Optional Parts List
  Part Number Qty Description
SATA DOM MEM-IDSAVM8A-008G

MEM-IDSAVM8A-016G

MEM-IDSAVM8A-032G

MEM-IDSAVM8A-064G

MEM-IDSAVM8A-128G		 - Vertical SATA DOM 8G

Vertical SATA DOM 16G

Vertical SATA DOM 32G

Vertical SATA DOM 64G

Vertical SATA DOM 128G
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
