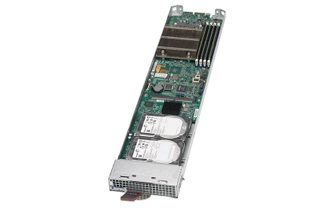

    MBI-6119M-C2

    Print

    Key Features

    • - 196 UP nodes per 42U Rack
      - 28/14 UP nodes in 6U/3U

    • 1. Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
    • 2. Up to 128GB ECC VLP UDIMM DDR4-2666MHz in 4 DIMM slots
    • 3. Up to 2x 2.5" SAS3 (12Gbps) drives
      M.2 Interface: 1 PCI-E 3.0 x4 / SATA3
      M.2 Form Factor: 2280/22110
      M.2 Key: M-Key
    • 4. Dual 1GbE LAN ports via Intel i350
      Dedicated LAN supports IPMI 2.0
    • 5. Avago 3008 SAS3 controller
    • 6. Aspeed AST2500
    Specifications
    Product SKUs
    MicroBlade
    • MBI-6119M-C2

    Motherboard

    • B2SC1-CPU

    Processor
    CPU
    • Single Socket H4 (LGA 1151),

      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series
    Cores
    • Up to 8 cores, 12 threads

    System Memory
    Memory Capacity
    • 4x DDR4 DIMM sockets
    • Supports up to 128GB DDR4 ECC VLP UDIMM
    Memory Type
    • 2666MHz ECC DDR4 UDIMM
    DIMM Sizes
    • 32GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors

        (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C246 chipset
    SAS
    • SAS3 (12Gbps) via Avago 3008
    Network Controllers
    • Dual 1GbE LAN ports
    IPMI
    • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)

    System BIOS
    BIOS Type
    • 128Mb Flash EEPROM
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • SMBIOS 2.7.1
    Dimensions
    Height
    • 1.2" (30.48mm)
    Width
    • 4.94" (125.48mm)
    Depth
    • 23.2" (589.28mm)
    Weight
    • Gross Weight: 4.3 lbs (1.95 kg)
    Available Colors
    • Silver Grey

    Front Panel
    LEDs
    • Power LED
    • Fault LED
    • Network Activity LED
    • UID / KVM LED

    Drive Bays
    Internal
    • 2x 2.5" SAS3 (12Gbps) drives
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key
    Others
    • 1x SuperDOM

    Input / Output
    TPM
    • 1 TPM Header

    Operating Environment / Compliance
    Environmental Spec.
    • Operating Temperature:

         10°C to 38°C (50°F to 100.4°F)
    • Non-operating Temperature:

         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:

         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:

         5% to 95% (non-condensing)

    Electromagnetic Compatibility (EMC)
    United States / Canada
    • FCC- Emissions (US) Verification
    Europe
    • EN55022 - Emissions
    • EN55024 - Immunity
    • EN61000-3-2 - Harmonics
    • EN61000-3-3 - Voltage Flicker
    • CE - EMC Directive 89/336/EEC
    Parts List
    Parts List - (Items Included)
      Part Number Qty Description
    Motherboard MBD-B2SC1-CPU-P 1 MicroBlade Board
    MicroBlade Sled MCP-680-31408-0N 1 M628 MicroBlade Modularized Skylake UP
    Micro Blade Module Chassis MCP-620-31409-0N

    MCP-620-31411-0N

    MCP-620-31412-0N

    MCP-640-31409-0N
    1

    1

    1

    1
    M628 Sled Node Cover with asset tag

    M628 Modularized Skylake UP 2x 2.5" HDD bracket

    M628 Sled Front Window with asset tag opening - Vertical

    M628 MicroBlade Modularized Skylake UP w/ 3008 Sled Base
    Air Shroud MCP-310-31407-0N 1 M628 MicroBlade Modularized Skylake UP Air Shroud
    Add-on Card AOM-BPNIO-MSC-P 1 AOM-BPNIO-MSC, I/O module for uBlade, RoHS
    Optional Parts List
      Part Number Qty Description
    TPM security module

    (optional, not included)
    AOM-TPM-9670V
    AOM-TPM-9671V
    1 TPM module (Vertical) TPM 2.0
    TPM module (Vertical) TPM 1.2.
    SuperDOM - - Supermicro SATA DOM Solutions [Details]
    Heatsink / Retention SNK-P1040V - Low Profile Proprietary Passive CPU Heat Sink for B2SC1 Associated Micro Blade Servers
    SATA DOM MEM-IDSAHM3-016G

    MEM-IDSAHM3-032G

    MEM-IDSAHM3-064G

    MEM-IDSAHM1-128G
    1 SATA3 DOM SH 3ME3 V2 16GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 32GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 64GB MLC w/ Pin8 VCC Horizontal

    SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
