SBI-4119MG-X

Print
Intergrated Board

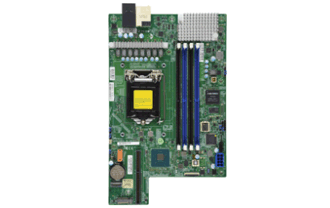

B11SCG-CTF
Views Angled ViewsTop ViewsRear Views

Key Features

  • 1. 100 CPUs per 42U Rack
  • 2. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series
  • 3. Intel® C246 chipset
  • 4. 1 NVMe/SATA M.2, 1 SATA DOM, 1 PCI-E 3.0 x16 (Double width GPU) or 2 PCI-E 3.0 x8 (Single width GPU)
  • 5. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
  • 6. Dual port 10G onboard
  • 7. IPMI 2.0, KVM over IP, Virtual Media over LAN
  • 8. Graphics: Aspeed AST2500 BMC
Specifications
Product SKUs
SBI-4119MG-X
  • Processor Blade SBI-4119MG-X (Black)

Motherboard


Super B11SCG-CTF

Processor
CPU
  • Single Socket H4 (LGA 1151),

    CPU TDP support up to 95W
  • Intel® Xeon® processor E-2100 / E-2200 series

System Memory
Memory Capacity
  • 4 DIMM slots
  • Up to 128GB ECC UDIMM
  • Up to DDR4-2666MHz
Memory Type
  • 2666/2400/2133MHz ECC DDR4 SDRAM
DIMM Sizes
  • 32GB, 16GB, 8GB, 4GB

On-Board Devices
Chipset
  • Intel® C246 chipset
Network Controllers
  • 2x 10GBase-T via Intel® X710
IPMI
  • Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM)
Graphics
  • Aspeed AST2500 BMC

System BIOS
BIOS Type
  • 128Mb SPI Flash EEPROM with AMI® BIOS
BIOS Features
  • Plug and Play (PnP)
  • PCI 2.2
  • ACPI up to 3.0
  • USB Keyboard support
Dimensions
Height
  • 6.5"
Width
  • 1.75"
Depth
  • 23.5"
Weight
  • 9.5 lbs (4.3 kg)
Available Colors
  • Black

Front Panel
Buttons
  • Power On/Off button
  • KVM button
LEDs
  • Power LED
  • UID / KVM LED
  • Network Activity LED
  • Fault LED
Connector
  • SUV (Serial/USB/Video) & KVM Connector

Expansion / Storage
PCI-E
  • 1 PCI-E 3.0 x16
  • 2 PCI-E 3.0 x8
M.2
  • 1 NVMe/SATA3 M.2
SATA DOM
  • 1 SATA DOM

Input / Output
TPM
  • 1 TPM Header
KVM
  • 1 Front Connector for SMCI KVM Card

Operating Environment
RoHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature:

       10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature:

       -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity:

       8% to 90% (non-condensing)
  • Non-operating Relative Humidity:

       5% to 95% (non-condensing)


Parts List
Parts List - (Items Included)
  Part Number Qty Description
Motherboard / Chassis MBD-B11SCG-CTF -O-P

MCP-680-41004-0N		 1

1		 Super B11SCG-CTF Motherboard

4U 10 SuperBlade GPU Blade chassis
Add-on Card / Module AOM-BLG-L16X2-P 1 AOM-BLG-L16X2, Dual PCIE x16 slot module with single x16 or dual x8 support for 8U/20 Superblade,RoHS
Add-on Card / Module AOM-BLG-L16X2-P 1 AOM-BLG-L16X2, Dual PCIE x16 slot module with single x16 or dual x8 support for 8U/20 Superblade,RoHS
Add-on Card / Module AOM-BPNIO-FPE-P 1 AOM-BPNIO-FPE, Front Control I/O module for SuperBlade,RoH
Air Shroud MCP-310-41005-0N 1 4U 10 SuperBlade GPU Tray Air Shroud
Optional Parts List
  Part Number Qty Description
Heat Sink SNK-P1041V - 1U Proprietary Passive CPU Heat Sink for 6U 10-blade Microblade Series Servers
TPM security module

(optional, not included)		 AOM-TPM-9670V
AOM-TPM-9671V		 1 TPM module (Vertical) TPM 2.0
TPM module (Vertical) TPM 1.2.
SuperDOM - - Supermicro SATA DOM Solutions [Details]
Software SFT-OOB-LIC 1 OOB Management Package (per node license)
Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
