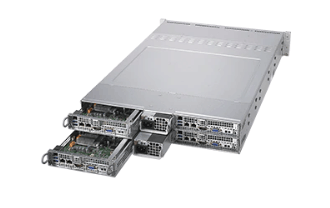

    SYS-6029TR-HTR

    Print
    Intergrated Board

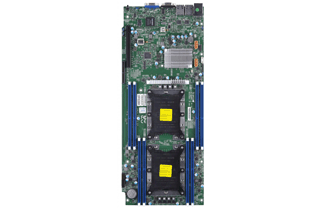

    X11DPT-L
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - HPC
      - Data Center
      - Enterprise Server
      - Finanical Analysis
      - Mission-critical applications
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • 3. 1 PCI-E 3.0 x16 (LP) slot
    • 4. Dedicated IPMI 2.0 LAN
    • 5. 3 Hot-swap 3.5" SATA3 drive bays
    • 6. 2 SATA DOM + 1 SATA/NVMe
      M.2 (22110/2280)
    • 7. Up to 1600W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SYS-6029TR-HTR
    • SuperServer 6029TR-HTR (Black)

    Motherboard (Four per System)

    Super X11DPT-L

    Processor/Cache (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-140W
    Cores
    • Up to 22 Cores
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro

    On-Board Devices (per Node)
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5 support
    Network Controllers
    • Intel® C621 chipset
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

    Input / Output (per Node)
    SATA
    • 3 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports total (rear)
    VGA
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 rear)
    Others
    • TPM 2.0 Header

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM with UEFI

    Management
    Software

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827HQ-R1K68BP3

    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Gross Weight: 73.5 lbs (33.34kg)
    • Net Weight: 52.1 lbs (23.63kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED

    Expansion Slots (per Node)
    PCI-Express
    • 1 PCI-E 3.0 x16 Low-profile slot

    Drive Bays / Storage (per Node)
    Hot-swap
    • 3 Hot-swap 3.5" SATA3 HDD trays
    Others
    • 2 SATA DOM
    • 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL

      * M.2 and SuperDOM are for OS boot

    System Cooling
    Fans
    • 4x 8cm heavy duty PWM fans with optimal fan speed controlled

    Power Supply (76mm Width)
    1600W 1U Redundant Power Supplies with PMBus
    Total Output Power
    • 800W: 100 – 140Vac
    • 1600W: 180 – 240Vac
    Dimension
    (W x H x L)
    • 76 x 40.4 x 336 mm
    Input
    • 100-140Vac / 10-7A / 50-60Hz
    • 180-240Vac / 11-8A / 50-60Hz
    +12V
    • Max: 67A / Min: 0A (100-140Vac)
    • Max: 133A / Min: 0A (180-240Vac)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification Titanium Level Certified96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DPT-L
    CSE-827HQ-R1K68BP3     		4
    1    		 Super X11DPT-L Motherboard
    2U Chassis
    Backplane BPN-ADP-6SATA3M2-1UL 4 6 x SATA3 with 6Gb/s,onboard 1 x M.2 . 22x80 mm and 22x110 mm,HF,RoHS
    Backplane BPN-SAS2-827HQ2 1 2U 12-Port 4-Node 6Gbps Backplane Supports 3x3.5
    Cable 1 CBL-PWCD-0900 2 PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
    Air Shroud MCP-310-82722-0B 4 SC827HQ mylar air shroud for on MBD-X11DPT-L-P
    Manual MNL-2163-QRG 1 6029TR-HTR Quick Reference Guide
    Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Heatsink / Retention SNK-P0067PSM 4 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-1K68A-1R 2 1U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
    FAN 1 FAN-0162L4 4 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH
    Optional Parts List
      Part Number Qty Description
    TPM security module (optional, not included) AOM-TPM-9670V 1 SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    TPM security module (optional, not included) AOM-TPM-9671V 1 SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray MCP-220-00043-0N - Black Hot-swap gen 4 3.5" to 2.5" HDD tray
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    Hide Parts List
