    SYS-2029BT-HNR

    Print

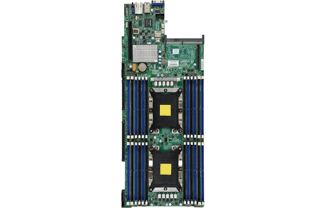

    Intergrated Board
    X11DPT-B
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Compute Intensive Application
      - HPC, Data Center, Enterprise Server
      - Hyperscale / Hyperconverged
    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • 1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake)‡
    • 2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM,
      Supports Intel® Optane™ DCPMM††
    • 3. 2 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking)
      Note: must bundle with Network card
    • 4. 6 Hot-swap 2.5" NVMe drive bays;
      2 M.2 SATA3 or NVMe support
    • 5. 1 Carrier Card slot (M.2 support)
    • 6. IPMI 2.0 + KVM with dedicated LAN
    • 7. Video via Aspeed AST2500 BMC
    • 8. 4 Heavy duty 8cm PWM fans with air shroud
    • 9. 2200W Redundant Power Supplies Titanium Level (96%)
    Specifications
    Product SKUs
    SYS-2029BT-HNR
    • SuperServer 2029BT-HNR (Black)

    Motherboard

    Super X11DPT-B

    Processor/Cache (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,
      Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-205W*
    Cores
    • Up to 28 Cores
    Note * 200W/205W CPUs are supported under certain configurations. Please contact Supermicro Technical Support for additional information about specialized system optimization
    Note ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R).

    Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.

    System Memory (per Node)
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    †† Cascade Lake only. Contact your Supermicro sales rep for more info.

    On-Board Devices
    Chipset
    • Intel® C621 chipset
    Network
    • Must bundle with at least one SIOM network card
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • ASPEED AST2500 BMC

    Input / Output (per Node)
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    Video
    • 1 VGA port
    DOM
    • 1 SuperDOM (Disk on Module) port
    Others
    • M.2 and SATA DOM for boot drive only

    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM

    Management
    Software
    Power Configurations
    • ACPI / APM Power Management

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BHQ+-R2K22BP2

    Dimensions and Weight
    Width
    • 17.6" (447mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.75" (730mm)
    Package
    • 24.65" (H) x 9.76" (W) x 45.28" (D)
    Weight
    • Gross Weight: 85 lbs (38.6kg)
    • Net Weight: 54.5 lbs (24.7 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED

    Expansion Slots (per Node)
    PCI-Express
    • 2 PCI-E 3.0 (x16) Low-profile slots
    • 1 SIOM card support
      (must bundle with network card)

    Drive Bays / Storage (per Node)
    Hot-swap
    • 6 Hot-swap 2.5" NVMe drive bays
    M.2
    • 2 M.2 NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B

    System Cooling
    Fans
    • 4 Heavy duty 8cm PWM fans with air shroud

    Power Supply
    2200W Redundant Power Supplies with PMBus
    Total Output Power
    • 1200W/1800W/1980W/2090/2200W
    Dimension
    (W x H x L)
    • 45 x 40 x 480 mm
    Input
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 180-220Vac (for UL/cUL only)
    • 2200W: 220-240Vac (for UL/cUL only)
    • 2090W: 230-240Vdc (for CCC only)
    +12V
    • Max: 100A / Min: 0A (100-127Vac)
    • Max: 150A / Min: 0A (200-220Vac)
    • Max: 165A / Min: 0A (220-230Vac)
    • Max: 174.17A / Min: 0A (230-240Vac)
    • Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only)
    • Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only)
    • Max: 174.17A / Min: 0A (230-240Vdc, CCC only)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • Gold Finger
    Certification Titanium Level96%  Titanium Level
      [ Test Report ]

    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)

    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11DPT-B
    CSE-217BHQ+-R2K22BP2     		4
    1    		 Super X11DPT-B Motherboard
    2U Chassis
    Backplane BPN-ADP-6NVME3-1UB 4 6x NVMe ports and 50A power sourcing daughter card for Big Twin
    Backplane BPN-NVME3-217BHQ 1 2U 24-Port 4-Node NVMe Backplane Support 6x2.5
    Cable 1 CBL-PWCD-0578 2 PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Drive Tray(s) MCP-220-00127-0B-BULK 24 Black gen3 Hotswap 2.5 NVMe drive tray, Orange tab/Lock/Bulk
    Parts MCP-240-21721-0N 1 217B BigTwin type I (Impact) BPN retention bkt assy
    Air Shroud MCP-310-21718-0B 4 Bigtwin air box for X11DPT-B(4pcs/set)
    Air Shroud MCP-310-21724-0B 4 Bigtwin 2U4N plastic air shroud (2pcs) for Cascade lake MB
    Manual MNL-1948-QRG 1 2029BT-H(N/T/NC0)R Quick Reference Guide
    Riser Card RSC-P-6 4 RSC-P-6 (1U LHS TwinPro RSC with 1 PCI-Ex16),RoHS
    Riser Card RSC-R1UTP-E16R 4 1U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention SNK-P0067PS 4 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Heatsink / Retention SNK-P0067PSM 4 1U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply PWS-2K22A-1R 2 1U 2200W Redundant Power Supply Titanium, 45(W) X 40(H) X 48
    Optional Parts List
      Part Number Qty Description
    TPM security module AOM-TPM-9670H 1 SPI capable TPM 2.0 with Infineon 9670 controller,
    Horizontal form factor
    TPM security module AOM-TPM-9671H 1 SPI capable TPM 1.2 with Infineon 9670 controller,
    Horizontal form factor
    Intel VROC RAID Key AOC-VROCINTMOD
    AOC-VROCSTNMOD
    AOC-VROCPREMOD    		 1
    1
    1    		 Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    Intel VROC Standard, RAID 0, 1, 10
    Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
    SuperDOM - - Supermicro SATA DOM Solutions [Details]
    Network Card(s) AOC-S40G-i2Q
    AOC-SGP-i2
    AOC-SGP-i4
    AOC-STG-b4S
    AOC-STGN-i2S
    AOC-STGN-i1S
    AOC-STG-i2T
    AOC-STG-i2    		 -
    -
    -
    -
    -
    -
    -
    -    		 Standard LP 2-port 40GbE controller, based on Intel Fortville XL710
    Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599EN
    Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    Carrier Card(s) AOC-SMG3-2H8M2-B
    AOC-SMG2-2TM2    		 -
    -    		 2x Hybrid NVMe/SATA M.2 carrier for BigTwin,HF,RoHS
    2x SATA M.2 RAID 1 adapter for BigTwin,HF,RoHS
