    SYS-5019C-M4L

    Print
    Intergrated Board

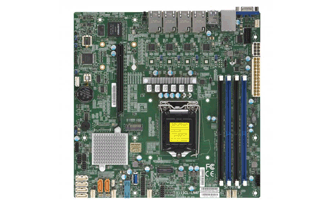

    X11SCL-LN4F
    Views Angled ViewsTop ViewsFront ViewsRear Views

    Key Features

    • - Entry level, Cost effective
      - Compact, less than 15" depth
    • 1. Single Socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
    • 2. Intel® C242 chipset
    • 3. Up to 128GB ECC UDIMM, up to DDR4-2666MHz; 4 DIMM slots
    • 4. 1 PCI-E 3.0 x16 slot
    • 5. 2x 3.5" or 3x 2.5" drive bays with optional converter kits
    • 6. M.2 Interface: 1 PCI-E 3.0 x4
      M.2 Form Factor: 2280/22110
      M.2 Key: M-Key
    • 7. 4 GbE LAN ports, 1 dedicated IPMI LAN
    • 8. 2 USB 3.1 (rear), 2 USB 2.0 (rear)
    • 9. 1 VGA, 1 COM (header), 1 TPM
    • 10. 350W Multi-output power supply, Platinum Level Certified
    Specifications
    Product SKUs
    SYS-5019C-M4L
    • SuperServer 5019C-M4L (Black)

    Motherboard

    Super X11SCL-LN4F

    Processor
    CPU
    • Single Socket H4 (LGA 1151),
      CPU TDP support up to 95W
    • Support Intel® Xeon® processor E-2100 / E-2200 series, 8th/9th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
    Cores
    • 6 cores, 12 threads
    Note
    • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series

    System Memory
    Memory Capacity
    • 4 DIMM slots
    • Up to 128GB Unbuffered ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB

    On-Board Devices
    Chipset
    • Intel® C242 chipset
    SATA
    • SATA3 (6Gbps) via Intel C242 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Quad LAN with Intel® I210-AT
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 6 SATA3 (6Gbps) ports; RAID 0, 1, 5, 10
    LAN
    • 4 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.1 ports (rear)
    • 2 USB 2.0 ports (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port (header)
    TPM
    • 1 TPM 2.0 Header

    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • UEFI 2.7
    • USB Keyboard support
    • PCI 3.0

    Management
    Software
    Chassis
    Form Factor
    • 1U Rackmount
    Model

    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 14.5" (368mm)
    Package
    • 6.3" (H) x 22" (W) x 20" (D)
    Weight
    • Gross Weight: 17 lbs (7.71 kg)
    • Net Weight: 11 lbs (4.99 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED

    Expansion Slots
    PCI-Express
    • 1 PCI-E 3.0 x16 slot
    M.2
    • M.2 Interface: 1 PCI-E 3.0 x4
    • M.2 Form Factor: 2280/22110
    • M.2 Key: M-Key

    Drive Bays
    Internal
    • 2x 3.5" or 3x 2.5" drive bays with optional converter kits

    System Cooling
    Fans
    • 2x 4cm counter-rotating PWM fan

    Power Supply
    350W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz, 5.0-2.5 Amp
    +5V
    • Max.: 15 Amp
    • Min.: 0.2 Amp
    +5V standby
    • Max.: 3 Amp
    • Min.: 0 Amp
    +12V
    • Max.: 29 Amp
    • Min.: 0.5 Amp
    -12V
    • Max.: 0.2 Amp
    • Min.: 0 Amp
    +3.3V
    • Max.: 12 Amp
    • Min.: 0.2 Amp
    Certification Platinum Level Certified     Platinum Level Certified
      [ Test Report ]

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
    FAN
    • 6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Thermal control tachometer fan connectors
    Temperature
    • Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:
         8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SCL-LN4F
    CSE-512F-350B1     		1
    1    		 Super X11SCL-LN4F Motherboard
    1U Chassis
    Parts MCP-260-00131-0N 1 1U I/O Shield for X11SCL-LN4F with EMI Gasket
    Manual MNL-2153-QRG 1 5019C-M4L Quick Reference Guide
    Riser Card RSC-RR1U-E16 1 RSC-RR1U-E16 with PIC-E x16 output
    Heatsink / Retention SNK-P0049P 1 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    * Power Supply PWS-350-1H 1 1U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    * Cable 1 CBL-0156L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,40CM,28AWG
    * Cable 2 CBL-0260L 1 US power cord 18AWG 6ft, PBF (default for low watt)
    * Cable 3 CBL-0261L 1 SATA,INT,FLAT,ST-RA,40CM,26AWG
    * Cable 4 CBL-0262L 1 PWEX,SATA,1X4M/P5.08 TO 1x4(RA)+1xSATA(RA)+1xFPD,18/22AWG
    * FAN 1 FAN-0087L4 2 40x56,4 Pin PWM Fan
    * Parts MCP-260-00024-0N 1 1U I/O shield for X8 server MB (3rd LAN + 4xLAN)
    * Parts MCP-260-00078-0N 1 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    * Front Panel MCP-280-51201-0N 1 Front control board (FP512) for SC512 (surface-mounted LED)
    * Parts MCP-290-00005-01 2 Black chassis handle for SC512F-520
    * Peripheral Drive 1 MCP-290-00006-01 1 Black DVD dummy cover for SC512, RoHS
    * Fan Holder MCP-320-00003-01 1 Fan holder of two 40x40x56mm fans for SC512F-280
    Notes:
    1. Parts with * are inside the chassis
    2. Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5
    DVM-PLDS-DVDRW-SBT5    		 1
    1    		 TEAC slim DVD-ROM SATA drive
    PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory MCP-220-81502-0N 1 Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray MCP-220-00044-0N - Dual 2.5" fixed HDD bracket
    Internal 2.5" HDD Tray MCP-220-00051-0N - Single 2.5" fixed HDD bracket
    Cable for internal HDD CBL-0484L
    CBl-0082L    		 -
    -    		 55cm 30AWG SATA straight to straigh cable
    Y split, big 4 pin to two RA SATA power extension 15cm
    Rail Kit MCP-290-00004-03
    MCP-290-00056-0N    		 1
    1    		 Chassis inner and outer rail set (25.6" ~ 33.05")
    Quick-release outer rail for square hole short-depth rack (19" ~ 26.4")
    Network Card(s) AOC-SGP-i2
    AOC-SGP-i4
    AOC-STGN-i2S
    AOC-STGF-i2S
    AOC-STG-B4S
    AOC-STGS-i2T    		 -
    -
    -
    -
    -
    -    		 Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350-AM2
    Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel 82599ES
    Standard Lp, 2x 10GbE SFP+, PCI-E x8, Intel X710-BM2
    Standard Lp, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    Standard Lp, 2x 10GbE RJ45, PCI-E x8, Intel X550-AT2
    TPM security module AOM-TPM-9670V
    AOM-TPM-9671V    		 1
    1    		 TPM 2.0, vertical form factor
    TPM 1.2, vertical form factor
    Global Services & Support OS4HR3/2/1
    OSNBD3/2/1    		 -
    -    		 3/2/1-year onsite 24x7x4 service
    3/2/1-year onsite NBD service
    Software SFT-OOB-LIC 1 OOB Management Package (per node license)
    Software SFT-DCMS-Single 1 DataCenter Management Package (per node license)
