    SYS-5029C-T

    Print
    Intergrated Board

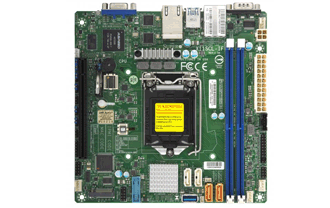

    X11SCL-IF
    Views Angled ViewsFront ViewsRear Views

    Key Features

    • - File server/ Entry Storage
      - Local Cloud and Web Hosting
      - Mainstream, Compact
    • 1. Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
    • 2. Intel® C242 chipset
    • 3. Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
    • 4. 1 PCI-E 3.0 x16 slot (for LP AOC)
    • 5. 4 Hot-swap 3.5" drive bays with BPN,
      2 fixed 2.5" drive bays,
      1 optional slim DVD-ROM bay
    • 6. M.2 Interface: 1 PCI-E 3.0 x4 or SATA 3.0
      M.2 Form Factor: 2280
      M.2 Key: M-Key
    • 7. 2 GbE LAN ports, 1 dedicated IPMI LAN
    • 8. 2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 (rear)
    • 9. 1 VGA, 1 COM, 1 TPM
    • 10. 250W Bronze Level power supply
    Specifications
    Product SKUs
    SYS-5029C-T
    • SuperServer 5029C-T (Black)

    Motherboard

    Super X11SCL-iF

    Processor
    CPU
    • Single Socket H4 (LGA 1151),
      CPU TDP support up to 80W
    • Support Intel® Xeon® Processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
    Cores
    • 6 cores, 12 threads
    Note
    • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series

    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Note
    • Future support for 64GB via BIOS update expected in early 2019

    On-Board Devices
    Chipset
    • Intel® C242 chipset
    SATA
    • SATA3 (6Gbps) via Intel C242 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with Intel® I210-AT
    Video
    • ASPEED AST2500 BMC

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.1 Gen1 (front)
    • 2 USB 3.1 Gen1 (rear)
    • 2 USB 2.0 (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port
    DOM
    • SATA DOM (Disk on Module) power connector support
    TPM
    • 1 TPM 2.0 Header

    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • Non-maskable Interrupt (NMI)
    • Chassis intrusion detection
    Chassis
    Form Factor
    • Mini Tower
    Model

    Dimensions and Weight
    Height
    • 9.45" (240mm)
    Width
    • 8.27" (210mm)
    Depth
    • 11" (279mm)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    Available Colors
    • Black

    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Ports
    • 2 USB 3.1 Gen1 ports

    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 slot, for low-profile AOC

    Drive Bays
    HDD
    • 4 Hot-swap 3.5" drive bays with BPN
    • 2 internal 2.5" drive bays
    Peripheral
    • 1 optional slim DVD-ROM bay

    Power Supply
    250W Flex ATX Multi-output Bronze Power Supply
    AC Voltage
    • 100 - 240V, 50 - 60Hz
    +5V
    • Max:14 Amp; Min:0.5 Amp
    +12V
    • Max:18 Amp; Min:1 Amp @100V-240V
    -12V
    • Max: 0.3 Amp
    +3.3V
    • Max: 12 Amp Min: 0.3Amp
    5VSB
    • Max: 2.5 Amp
    Certification 80 PLUS   Bronze Certified

    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3+0 CPU switch phase voltage regulator
    • CPU thermal trip support
    FAN
    • Low noise fan speedcontrol
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for 4x 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)

    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0

    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:
         10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:
         -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
         20% to 95% (non-condensing)
    • Non-operating Relative Humidity:
         5% to 95% (non-condensing)
    Parts List
    Parts List - (Items Included)

    		 Part Number
    		 Qty
    		 Description
    Motherboard / Chassis MBD-X11SCL-iF
    CSE-721TQ-250B2    		 1
    1    		 Super X11SCL-iF Motherboard
    Mini Tower Chassis
    Air Shroud MCP-310-00095-0B 1
    Backplane CSE-SAS-733TQ 1 4x3.5\" SAS2/SATA3 backplane w/SES-II
    Cable 1 CBL-0484L 4 SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 2 CBL-0157L 1 CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
    Manual MNL-2170-QRG 1 SYS-5029C-T Quick Reference Guide
    Parts MCP-260-00042-0N 1 STD I/O shield for X9 socket R server MB with Gasket.
    Power Supply PWS-251-1H 1 1U 250W Flex ATX Multi-output Bronze Power Supply
    Optional Parts List

    		 Part Number
    		 Qty
    		 Description
    Adaptor HDD carrier MCP-220-00043-0N - Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
    DVD-ROM / DVD-RW DVM-TEAC-DVD-SBT5 - Black slim SATA DVD (8x DVD, 24x CDR), TEAC
    SATA DVD Kit MCP-220-81502-0N - Slim SATA DVD kit
    Cable CBL-PWEX-0645 - Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG
    Adaptor HDD carrier MCP-220-00118-0B - Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    CPU Heatsink Fan SNK-P0074AP4 - Active CPU Heat Sink w/ a Side-mount Fan for Intel Socket H Series Motherboards
